XDMXv3

One board for the whole fixture.

One four-layer board with everything on it: two Ethernet ports that keep the run alive when a fixture loses power, two isolated DMX ports, a wall of buffered 5 V outputs, a card slot and a header for whatever comes next. Same firmware, same core — a new board file.

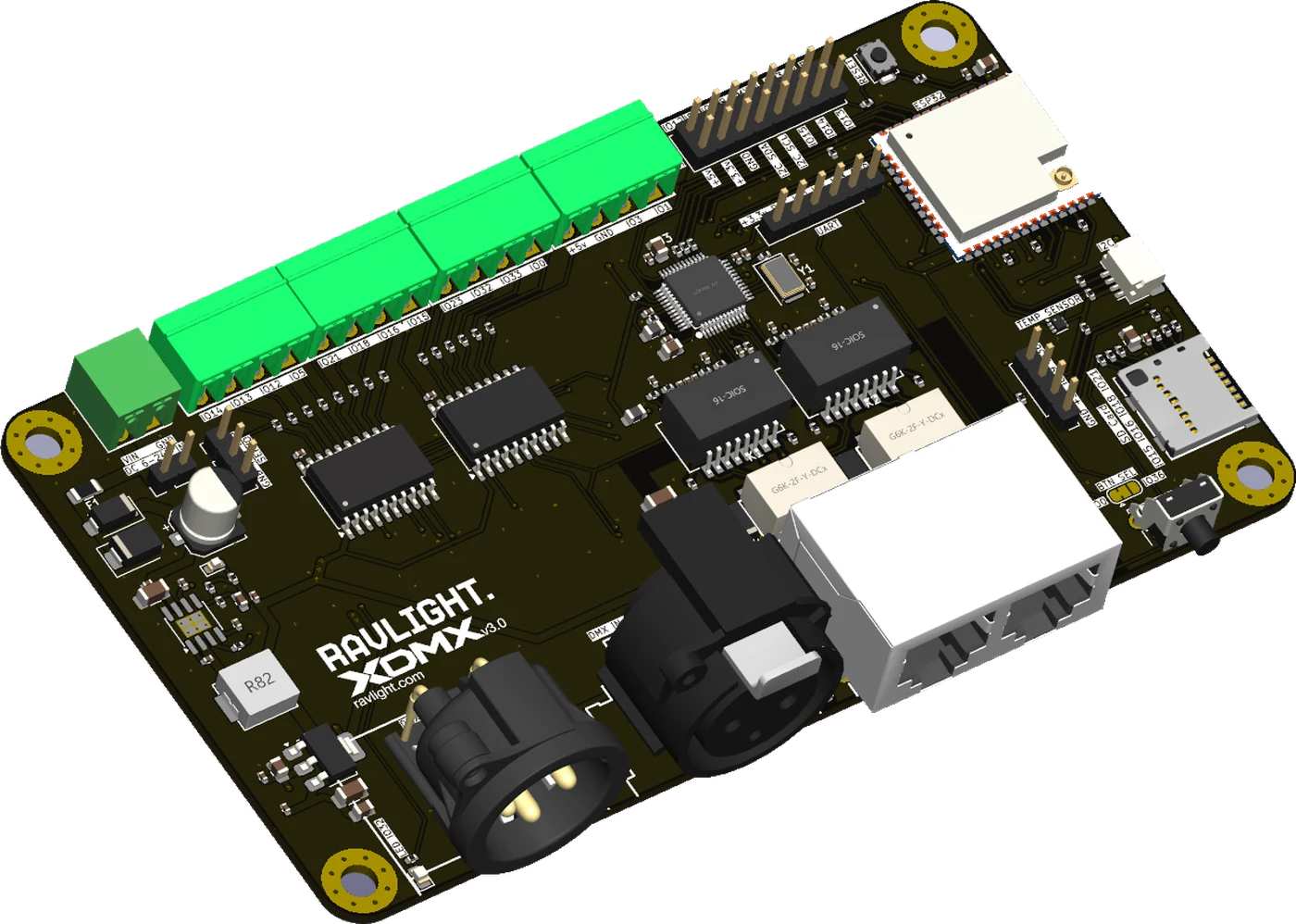

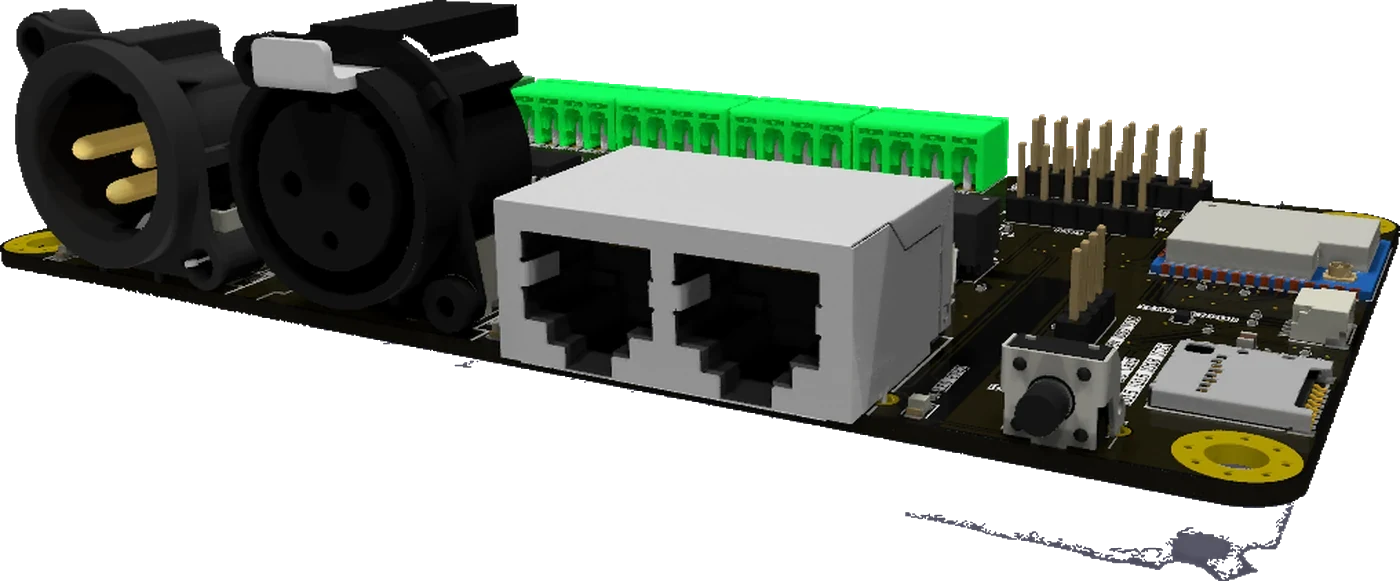

XDMX v3 board, three-quarter view — processor module, dual Ethernet jacks, two XLR connectors and a row of pluggable terminal blocks along the top edge
FIG. 1 — PRE-PRODUCTION RENDER OF THE CURRENT LAYOUT
Board
130 × 75 mm
Ethernet
2 ports, switched
Wired DMX
2 isolated ports
Outputs
8–14 at 5 V
Input
6–24 V DC
The design

Designed as one piece

XDMX v3 is a single four-layer board: the power stage, the network section, both DMX ports, the protection and the output buffering laid out together and assembled by machine on both sides. One set of tolerances instead of three, a low enough stack to disappear into a fixture body, and every signal routed on purpose rather than jumped between modules.

That integration is what pays for the rest of this page — a second network port, so fixtures chain to each other instead of back to a switch, and a bypass that bridges those two ports when the board has no power, so one dark fixture doesn't take the rest of the run with it.

The rest of the decisions follow from where these boards end up: on a truss, in a rack, inside something that has to come down at the end of the night. Connectors grouped on one edge so they can face a panel. Pluggable blocks, so a fixture unplugs without being unwired. Six to twenty-four volts in, fused and protected, because an installation rarely offers a clean supply.

The processor is the one RavLight has always run on — the classic ESP32, the only one in the family with a hardware Ethernet controller. So v3 is new hardware running firmware that already exists: a board file, not a rewrite.

The board

A guided tour

What each part of the board is for. Pick any marker.

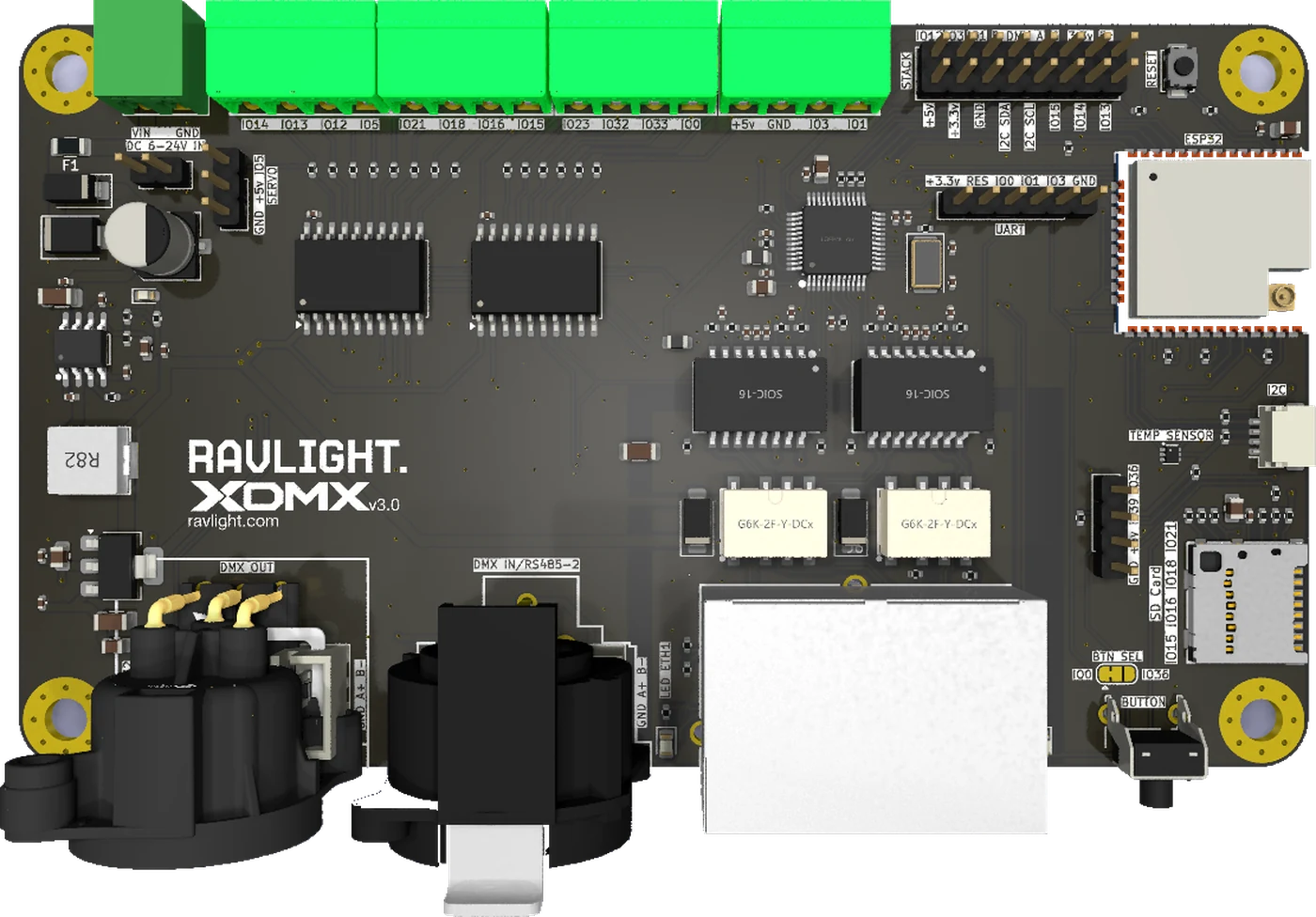

XDMX v3 seen from above: terminal blocks along the top edge, processor module at the right, Ethernet section in the middle, XLR and network jacks along the bottom edge
FIG. 2 — COMPONENT SIDE · CONNECTORS GROUPED ON ONE EDGE FOR PANEL MOUNTING
Processor

The processor

A classic ESP32 — the only one in the family with a hardware Ethernet controller, which is why RavLight is built on it and why v3 keeps it. Wired network first, WiFi and its own access point as fallback, and an external antenna connector so the radio still works from inside a metal fixture body.

Wired Ethernet · WiFi · Bluetooth
↖ 12 markers · click, or tab through them
Ethernet

Chain the fixtures. Then unplug one.

Two ports and a switch inside turn a star into a run — and a bypass makes sure a run survives a fixture that goes dark.

One address per fixture, no switch per position

A switch sits between the two jacks and the processor: one jack is the inlet, the other passes through to the next fixture, and the processor hangs off the same switch. The fixture is a node on the run, not a leaf on a star, and it still takes exactly one address on the network.

For a truss of ten bars that is one cable up and nine short jumpers, instead of ten drops back to a switch that has to live somewhere.

The bypass is the point

Daisy-chaining anything has one classic failure: the chain is only as good as its weakest node. v3 answers that in hardware. At rest, two relays hold the two jacks wired straight to each other. Power the board and they open, so the switch handles traffic normally.

Kill the power — blown fuse, pulled cable, dead supply — and they fall closed again. The fixture goes dark; the run behind it does not.

Ethernet daisy chain with power-fail bypass Four fixtures chained from a console. The second one has lost power: its bypass closes and links the two jacks directly, so data still reaches the fixtures after it. CONSOLE Art-Net FIXTURE 1 passing through NO POWER bypass closed jack to jack, straight through FIXTURE 3 still patched … DATA PATH — UNBROKEN
link carrying data fixture without power the bypass costs the board no data path — it is wired ahead of everything
Wired DMX

Two isolated ports, one solder bridge

Both DMX ports are optically isolated, so nothing on a DMX line finds its way to the processor. A bridge on the board decides what the input is for.

Fixture on a DMX run

Input and output share one line: the fixture reads it and passes it on, exactly like every other fixture on the chain. The factory default — nothing to set.

IN FIXTURE THRU one universe

Two independent universes

The input moves to the second port on its own line. The board becomes a two-port node: one universe in, a different one out — wire to wire, or network to wire.

IN NODE OUT universe A universe B

Network to wire

Fed from the network instead, one board becomes a two-universe Art-Net or sACN gateway — the job the Axon node already does, without a second box in the rack.

LAN GATEWAY two universes out

XLR only if you want it

The two panel connectors are optional. Both ports are also brought out on internal headers, so a fixture that puts its own connectors on the enclosure — or has no XLR at all — takes the board without them and wires the line straight to the loom.

Same trade on the network side

The Ethernet jacks sit on the board for a rack build, and a short internal lead takes a port out to a locking connector on the panel when the fixture needs one. End-of-line termination for DMX is set on the board, not with a plug.

Outputs & expansion

What you can hang off it

⚡

Eight outputs, or fourteen

Eight buffered outputs in the standard build — and up to fourteen if you trade away functions you are not using on that job. Addressable strips, PWM dimmers or relays, all leaving the board at a clean 5 V.

📏

5 V that survives the cable

Every data line is buffered up from 3.3 V before it leaves the board, with real drive behind it. That is the difference between a strip that works at three metres and one that works at the far end of a truss.

🔩

Screw or plug, your choice

Pluggable blocks for install work — wire them on the bench, unplug the fixture without unwiring it — each doubled with an internal header footprint for loom-built fixtures. The pin name is printed next to every pole.

💾

A card slot on board

For the scene manager: record a look from any source, leave the card in, and the fixture runs the show on its own with nothing else on the network.

🧱

A header for what's next

An expansion header carrying the serial buses, spare signals and both supply rails, ready for a board stacked on top. The motor module for the Orion winch is the first thing meant to sit there.

🌡️

Sensors, buttons, inputs

On-board temperature reported to the web UI and Home Assistant, a plug-in port for any other sensor, two analogue inputs and a panel-button header — a fixture in a sealed box on a roof is a thermal problem worth watching.

Where it goes

One board, as many products as you flash

The fixture layer is firmware. These are the ones that exist today — with two DMX ports, fourteen possible outputs, an expansion header and a card slot, they are nowhere near the limit.

Runs Veyron

The brain of a pixel bar

A pixel strip with independent white accents, nine DMX personalities, shutter and dimming curves — the fixture RavLight was built around, now with a second network port so a row of bars chains bar to bar, and data that survives the run to the far end of the truss.

Runs Elyon

A controller for a big display

Outputs with their own universe mapping, pixel count and colour order, fed from sACN or Art-Net over wired Ethernet. For the holiday display that outgrew one controller and the installation that cannot rely on WiFi.

Runs Axon

A node at the end of a cable run

Two universes of wired DMX out of a network drop, with the chain passing through to the next node and the bypass behind it. The unglamorous box that makes the rest of the rig work — and the one that must never be the reason a run goes quiet.

Runs Orion

A winch, once the module lands

The expansion header carries everything a motor driver needs. The plan is a daughter board with the stepper stage on it, so the controller that runs the lights and the one that runs the lift stop being two devices in the rig.

Runs yours

And the ones nobody has built yet

A DMX merger. A relay box on a truss. A sensor node that reports back over the same network the lights are on. Nothing about the board is specific to lighting past the two DMX ports — the fixture layer is where a new product gets written, and that part is open.

Specification

On paper

Pre-production. Anything here can still move before the first run comes back.

ProcessorESP32, dual core, with hardware Ethernet, WiFi, Bluetooth and an external antenna connector
EthernetTwo 10/100 ports through an on-board switch — one address per fixture, daisy chain without external hardware; link indicator per port
BypassThe two ports are bridged whenever the board is unpowered, so the chain survives a dead fixture
Wired DMXTwo optically isolated ports; XLR connectors optional, both ports also on internal headers; input routed to either port by solder bridge; selectable end-of-line termination
Network protocolsArt-Net and sACN / E1.31 received natively, up to 32 universes, discovery reply, mDNS announcement
OutputsEight buffered 5 V lines in the standard build, up to fourteen when unused functions are traded away; pluggable blocks doubled with internal header footprints, plus a servo header
StoragemicroSD, with card detect
ExpansionStack header with serial buses, spare signals and both supply rails · plug-in sensor port · two analogue inputs · panel-button header
SensingOn-board temperature, reported to the web UI and Home Assistant
Power6–24 V DC on a pluggable block; fuse, reverse-polarity and surge protection; 5 V and 3.3 V generated on board
Board130 × 75 mm, four layers, four M3 mounting holes, assembly both sides
FirmwareRavLight core, unchanged — Veyron, Elyon and Axon fixtures, web UI, OTA, DMX recorder, device discovery
