Web UI guide

Everything is configured from the browser — no app, no cloud. The page is served by the board itself and organized in accordions. Changes to DMX and fixture parameters apply live; only network and ID changes trigger a restart.

Network

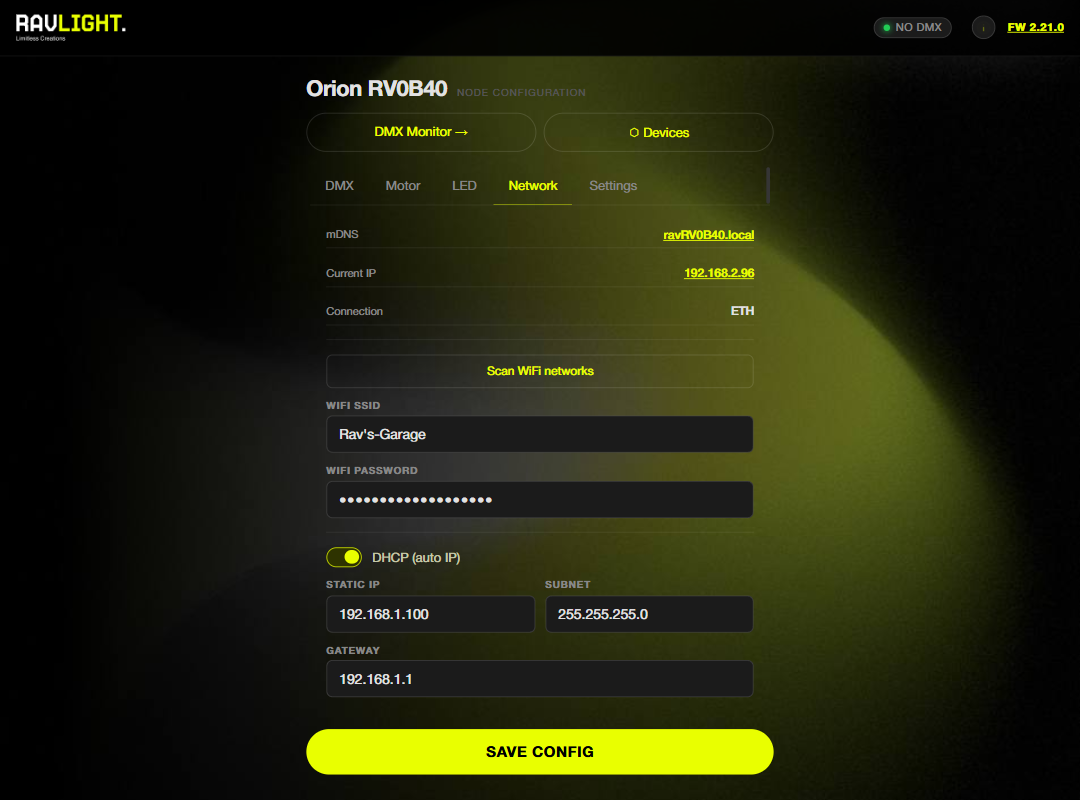

Ethernet is primary on boards that have it — plug the cable and DHCP does the rest, or set a static IP. WiFi settings include an SSID scan list; if neither Ethernet nor WiFi comes up, the board falls back to its own SoftAP so it's never unreachable. A connection status badge shows the live link state, and the mDNS hostname (ravXXXX.local) is configured here too.

DMX

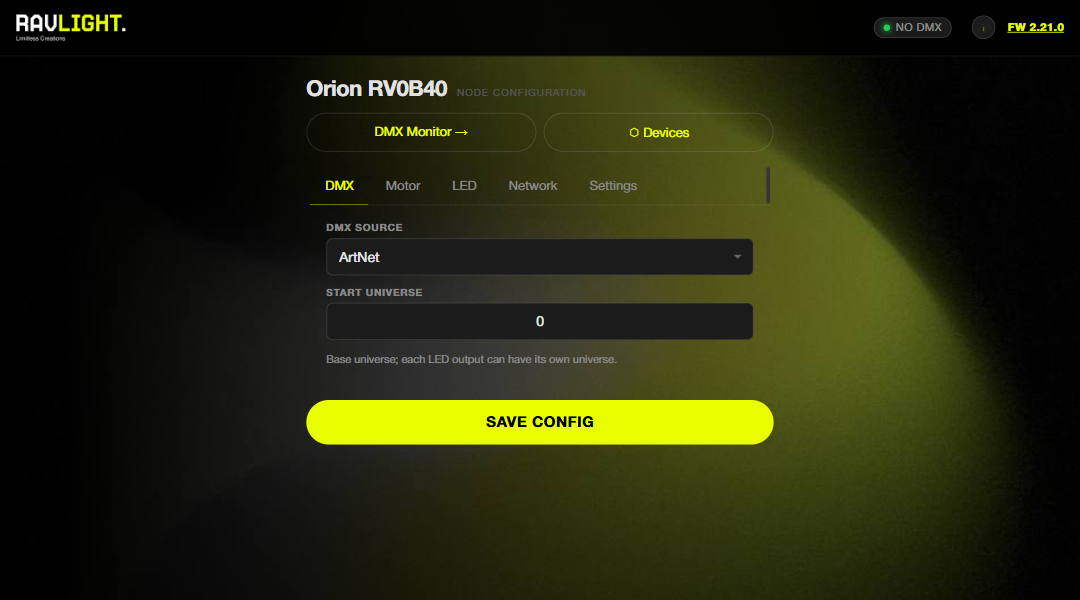

The source selector switches between Art-Net, sACN, Wired DMX, Auto Scene (recorder playback) and Effects — live, without a reboot. Set the start universe and start channel to match your patch. A live FPS counter shows the incoming frame rate of the active source, which is the quickest sanity check that data is flowing.

Fixture section

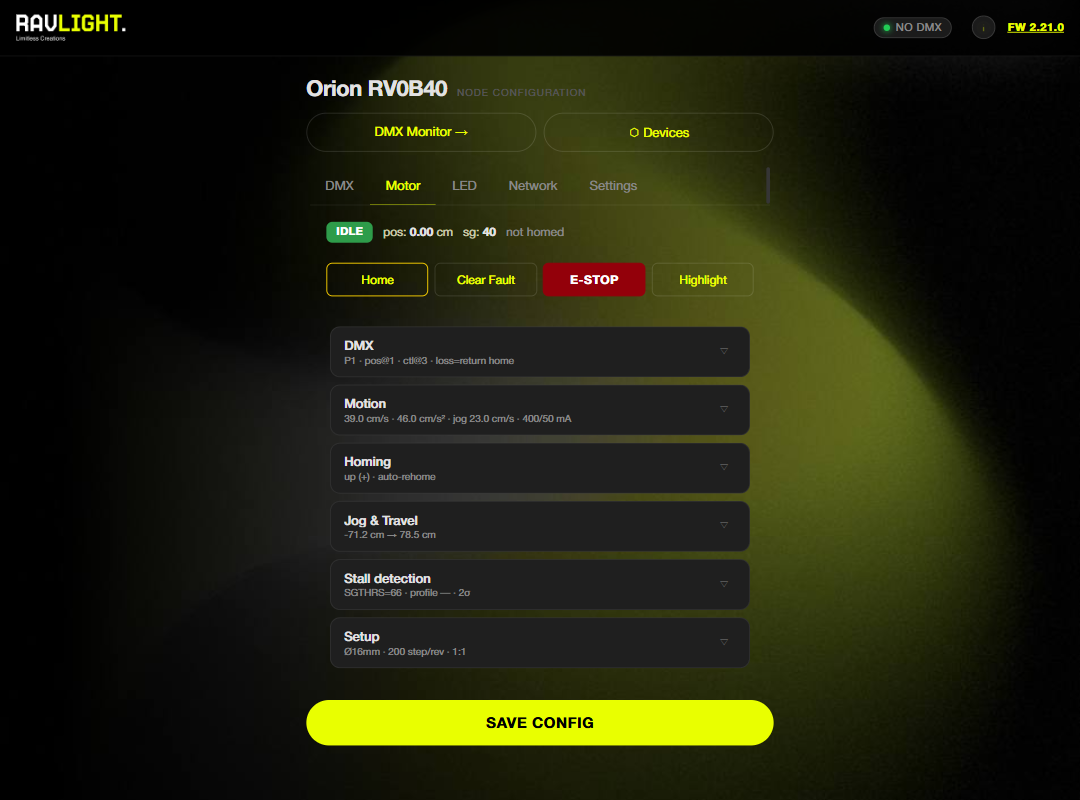

Each fixture injects its own accordion: Veyron shows personalities and dimming curves, Elyon shows the per-output table, Orion shows motor status, jog controls and the setup wizard. See the dedicated guides — Veyron, Elyon, Orion.

DMX monitor

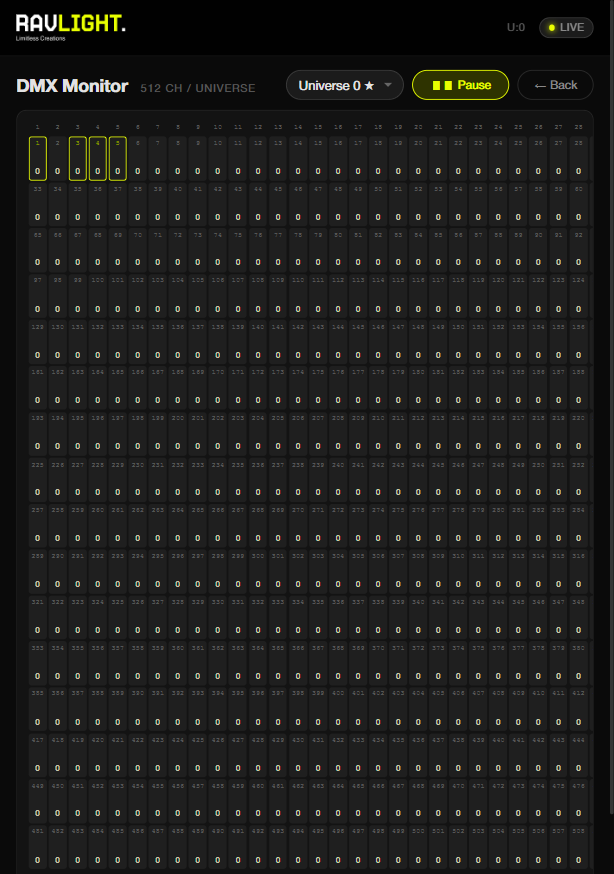

A standalone page showing the live DMX buffer as a 32×16 grid of channel values with color coding. Channels used by the fixture are highlighted, a universe selector lets you inspect any registered universe, and pause/resume freezes the view for reading values. This is the first place to look when "nothing is moving" — if the grid is live, the network is fine.

Built-in Effects

Five fixture-aware effects (Solid, Rainbow, Chase, Fire, Twinkle) render on-device with live preview — color picker, speed and intensity — so a node can produce light with no console attached. Fixtures can add extras (Veyron: white accent, strobe RGB / strobe White).

Devices panel

The Devices button scans the LAN for other RavLight nodes over UDP broadcast and ESP-NOW and lists them with ID, IP and fixture info. From the detail popup you can highlight a device (visual identify), reset it remotely, or push WiFi credentials to it with "Send WiFi".

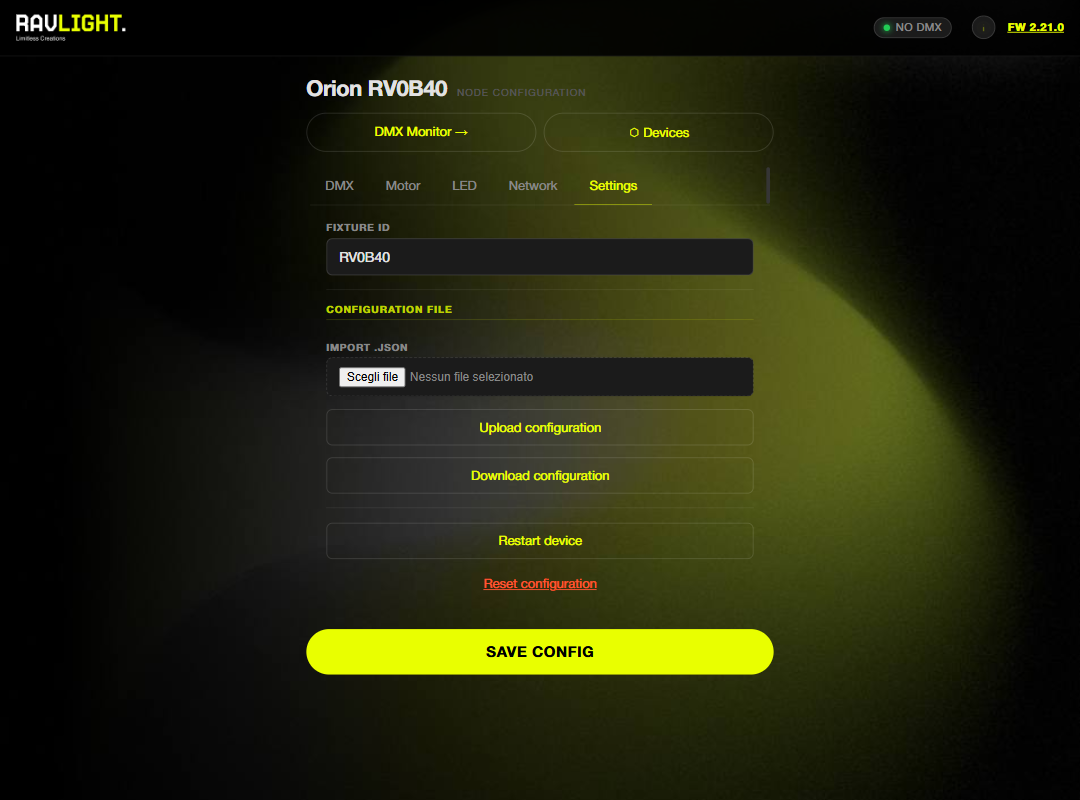

Settings

OTA update — upload the _fw_ and _fs_ binaries from a release; the board reboots after each.
Backup / restore — export the full configuration as JSON and re-import it later or onto a replacement board.
Fixture ID — the name used for the SoftAP, mDNS hostname and discovery.
Restart and factory reset actions.

The config lives in NVS, not in the filesystem — it survives OTA and filesystem updates. Saving network or ID changes shows a 10-second countdown overlay and redirects to the board's new address automatically.
